KEB EMERGENCY COLLETS
GENERAL DESCRIPTION:
In most cases, Emergency Collets are for temporary use when a
permanent collet is not available. Emergency collets are thru-
hardened for wear resistance yet soft enough to machine to your
custom needs. Emergency collets are available in standard
lengths or extended nose lengths. It is good practice to maintain
a small inventory of Emergency Collets for each machine to
safeguard against that inevitable crash.
PROCEDURE:
1. Order a permanent hardened replacement collet;
2. Place your Emergency Collet into your subspindle;
3. Place the 3 pins into the holes on the face/nose;
4. Apply pressure to close collet on the pins;
5. Drill and bore the collet to the required size.
*Please note that the pins are machine able if the pin location
diameter interferes with the finish bore size that you require.
CUSTOM EMERGENCY COLLETS:
Standard and Extended Nose Emergency Collets have a standard
pilot hole of 1/16" (.062). Custom pilot holes to your specification
are available as a special order. Standard Extended Nose Collets
have a straight nose. Taper nose Emergency Collets are also
available as a special order.
EMERGENCY GUIDE BUSHINGS:
Emergency Guide Bushings are constructed of Meehanite and are
available as a special order. The standard pilot hole is 1/16"
(.062).

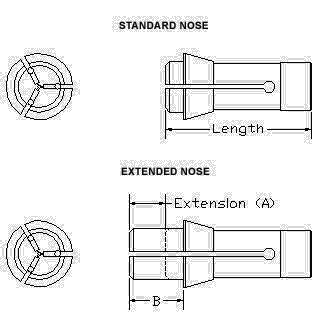

KEB EMERGENCY COLLET SPECIFICATIONS
| EMERGENCY COLLETS | |||||
| Standard Emergencies | Extended Nose Emergencies | ||||
| Collet | Length | Pilot Hole | Extension (A) | B | Pilot Hole |
| E13 | 64mm | 1/16 | .500 | .750 | 1/16 |
| 2.520" | |||||
| E15 | 64mm | 1/16 | .625 | .850 | 1/16 |
| 2.520" | |||||
| E16 | 64mm | 1/16 | .625 | .850 | 1/16 |
| 2.520" | |||||
| E20-201 | 26mm | 1/16 | .625 | .825 | 1/16 |
| 1.024" | |||||
| E20 | 67mm | 1/16 | .750 | 1.006 | 1/16 |
| 2.638" | |||||
| E24 | 62mm | 1/16 | .625 | .895 | 1/16 |
| 2.440" | |||||
| E25 | 77mm | 1/16 | .750 | 1.130 | 1/16 |
| 3.032" | |||||
| E0161 | 65mm | 1/16 | .850 | 1.000 | 1/16 |
| 2.559" | |||||
| E30 | 80mm | 1/16 | 1.000 | 1.400 | 1/16 |
| 3.150" | |||||
| E34 | 80mm | 1/16 | 1.000 | 1.400 | 1/16 |
| 3.150" | |||||
| E37 | 92mm | 1/16 | 1.000 | 1.375 | 1/16 |
| 3.622" | |||||
| E40 | 92mm | 1/16 | 1.000 | 1.394 | 1/16 |
| 3.622" | |||||
| E44 | 92mm | 1/16 | 1.000 | 1.394 | 1/16 |
| 3.622" | |||||
| E48 | 94mm | 1/16 | 1.000 | 1.315 | 1/16 |
| 3.700" | |||||
CROSS REFERENCE TABLE
| KEB | Alternate |
| Part Numbers | Part Numbers |
| B42 | B42 |
| BS32C | BS32C |
| MC18579 | F18-579 |
| MC20-201 | F20-201 |
| MC32-221 | F32-221 |
| MC8 | TF8 |
| MC10 | TF10 |
| MC12 | TF12 |
| MC13 | TF13 |
| MC15 | TF15 |
| MC16 | TF16 |
| MC20 | TF20 |
| MC24 | TF24 |
| MC25 | TF25 |
| MC30 | TF30 |
| MC34 | TF34 |
| MC37 | TF37 |
| MC40 | TF40 |
| MC44 | TF44 |
| MC48 | TF48 |
| MC0161 | 0161 |
